Whirlpool Oven Control Panel

Model Number: WFG540H0ES0

Serial Number: R60955692

Serial number

Backstory: 10 year old oven control panel stopped responding to the “up/down” buttons on the control panel. Kind-of a drag, because the timer, oven temperature, clock etc all need the up/down buttons be useful. We baked things at 350F for a week, and then my 12yo son told me that we should fix it.

The control panel circuit board was behind two screws and a piece of sheet metal on the back of the stove. One of the plastic fingers that pushes the button switches on the circuit board had broken. 5-minute epoxy seemed to be a good enough fix.

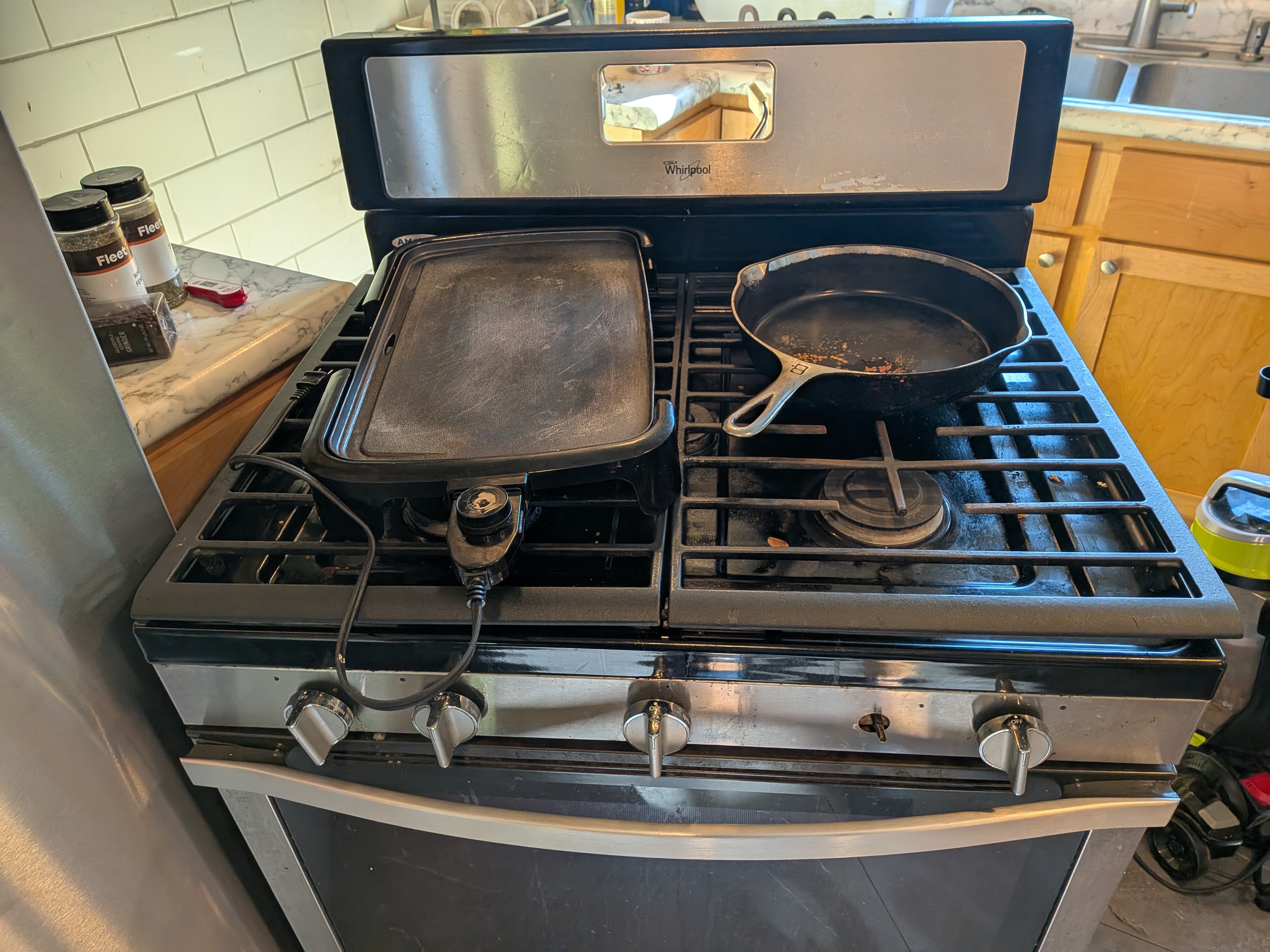

The front of the gas oven, control panel removed.

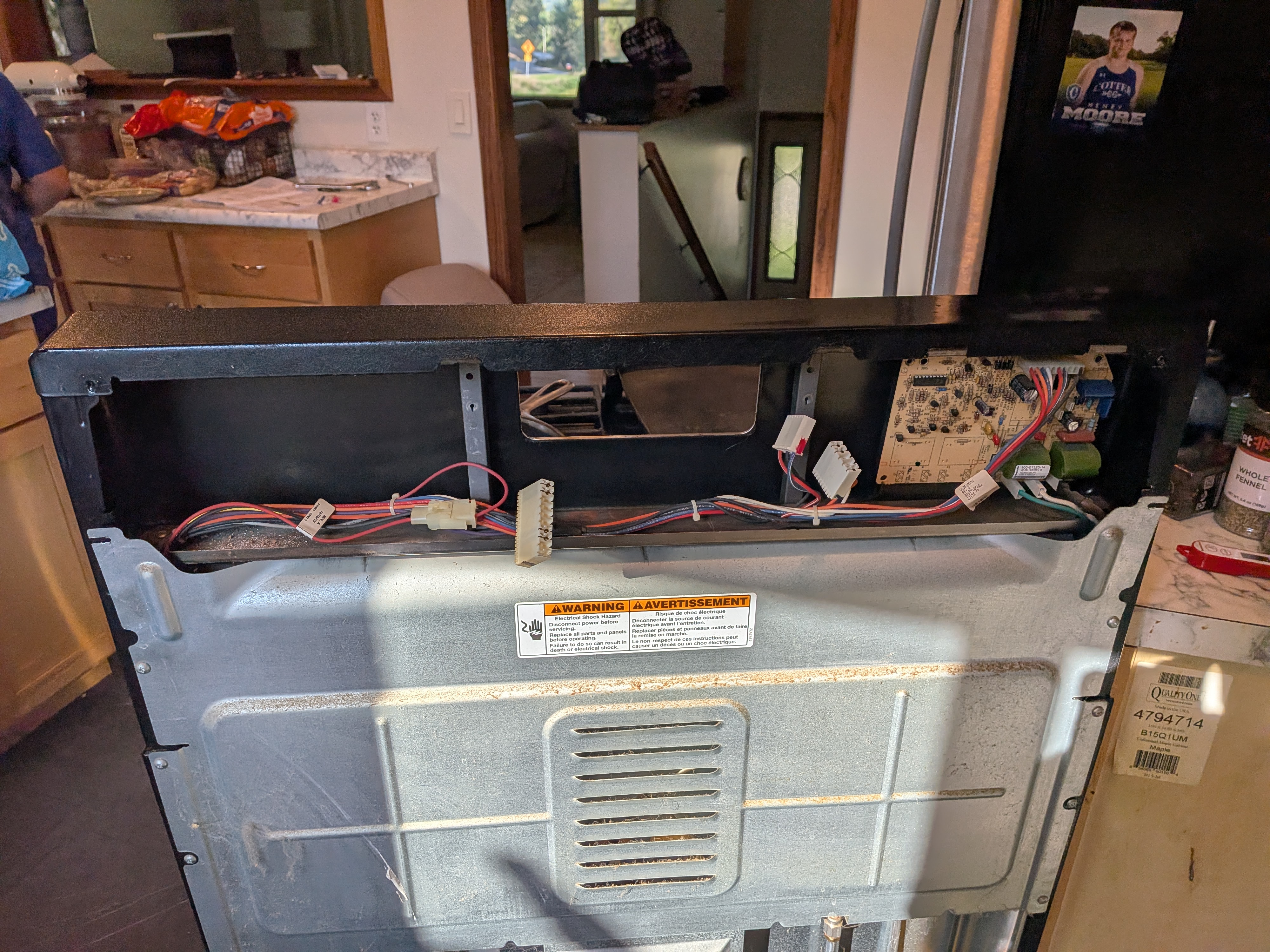

The back of the gas oven, control panel removed.

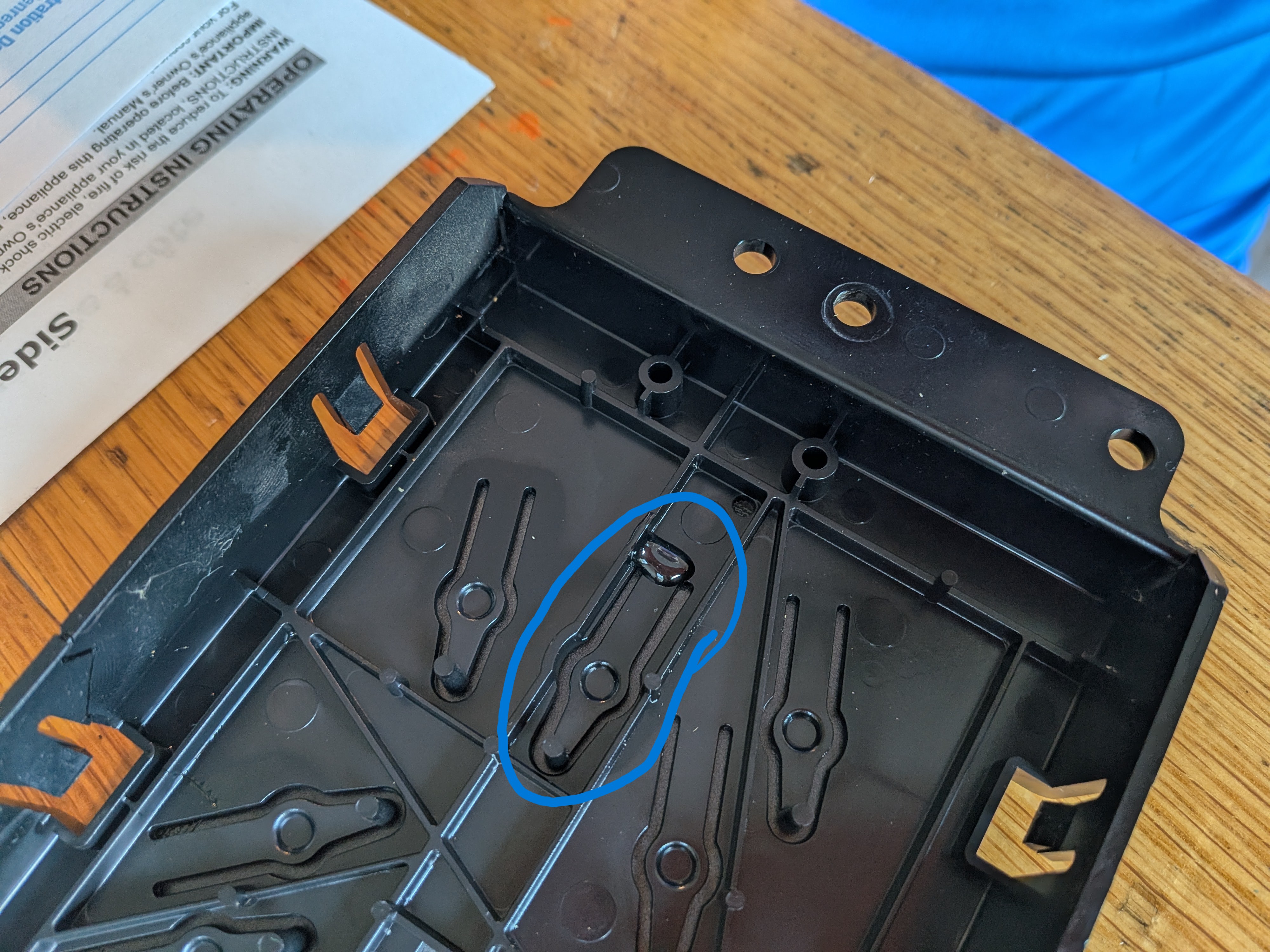

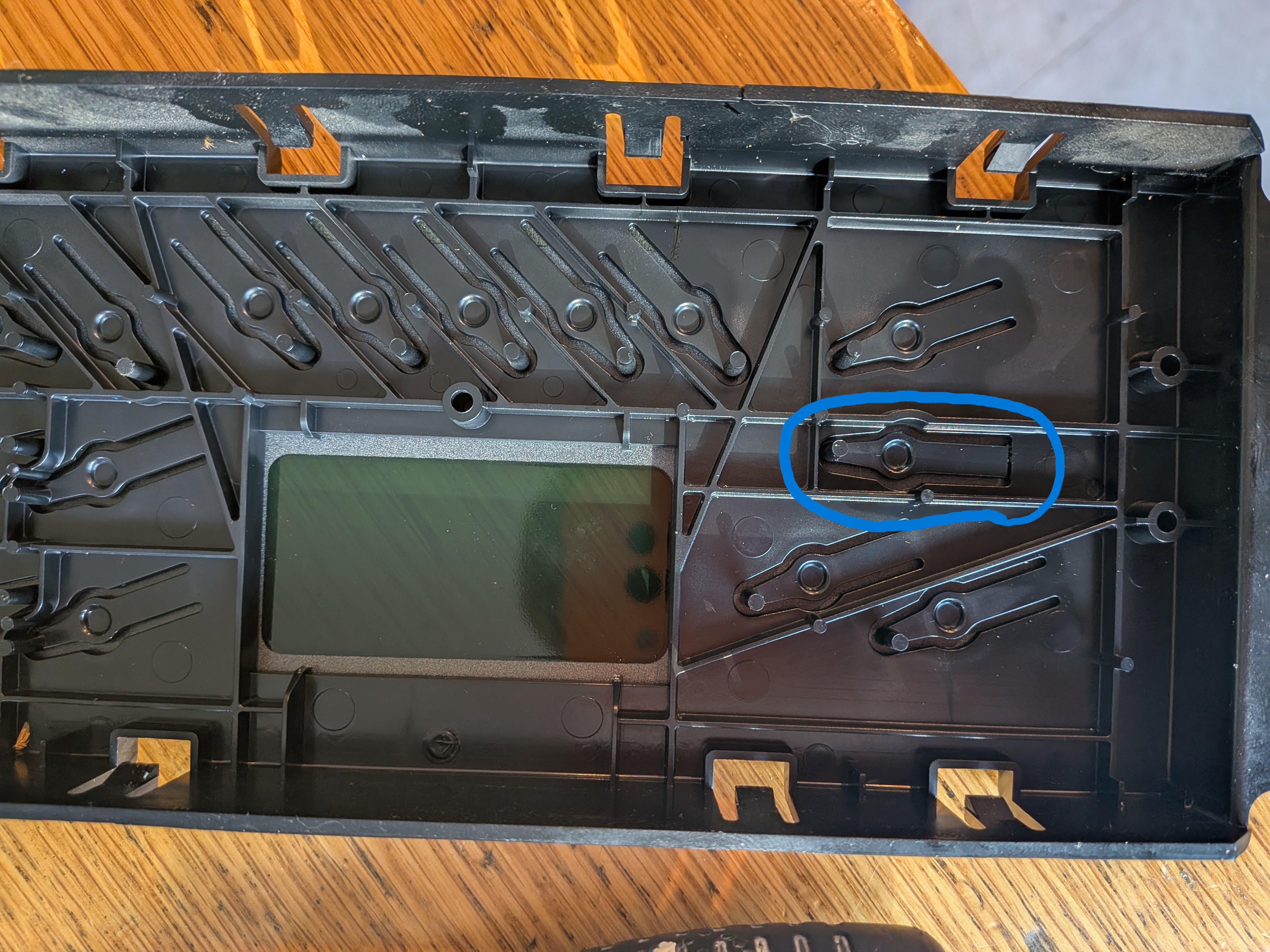

Back side of the control panel, broken plastic finger is circled.

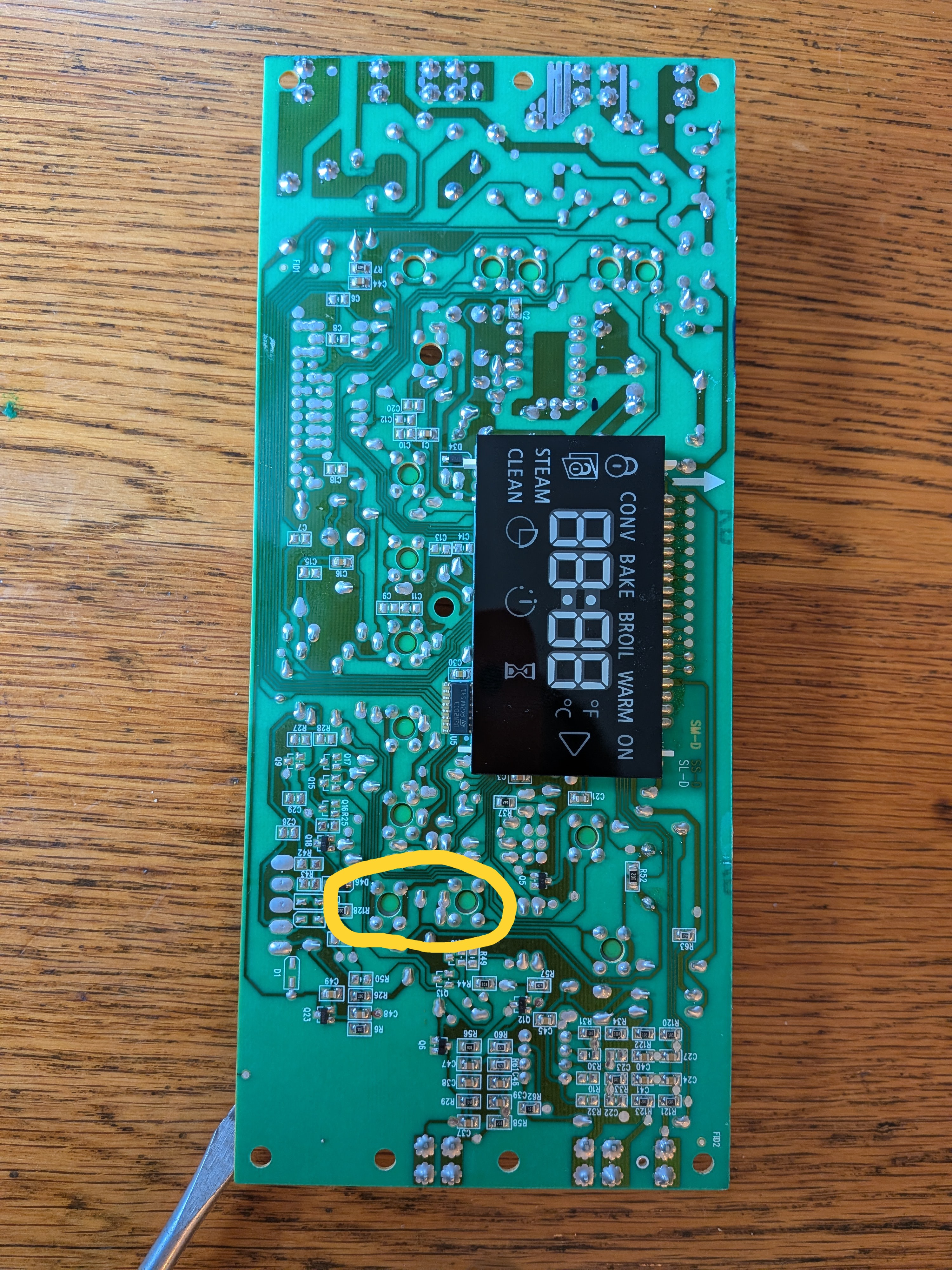

Back of the circuit board, button switch points are visible. One of the circled switches wasn't being pushed.

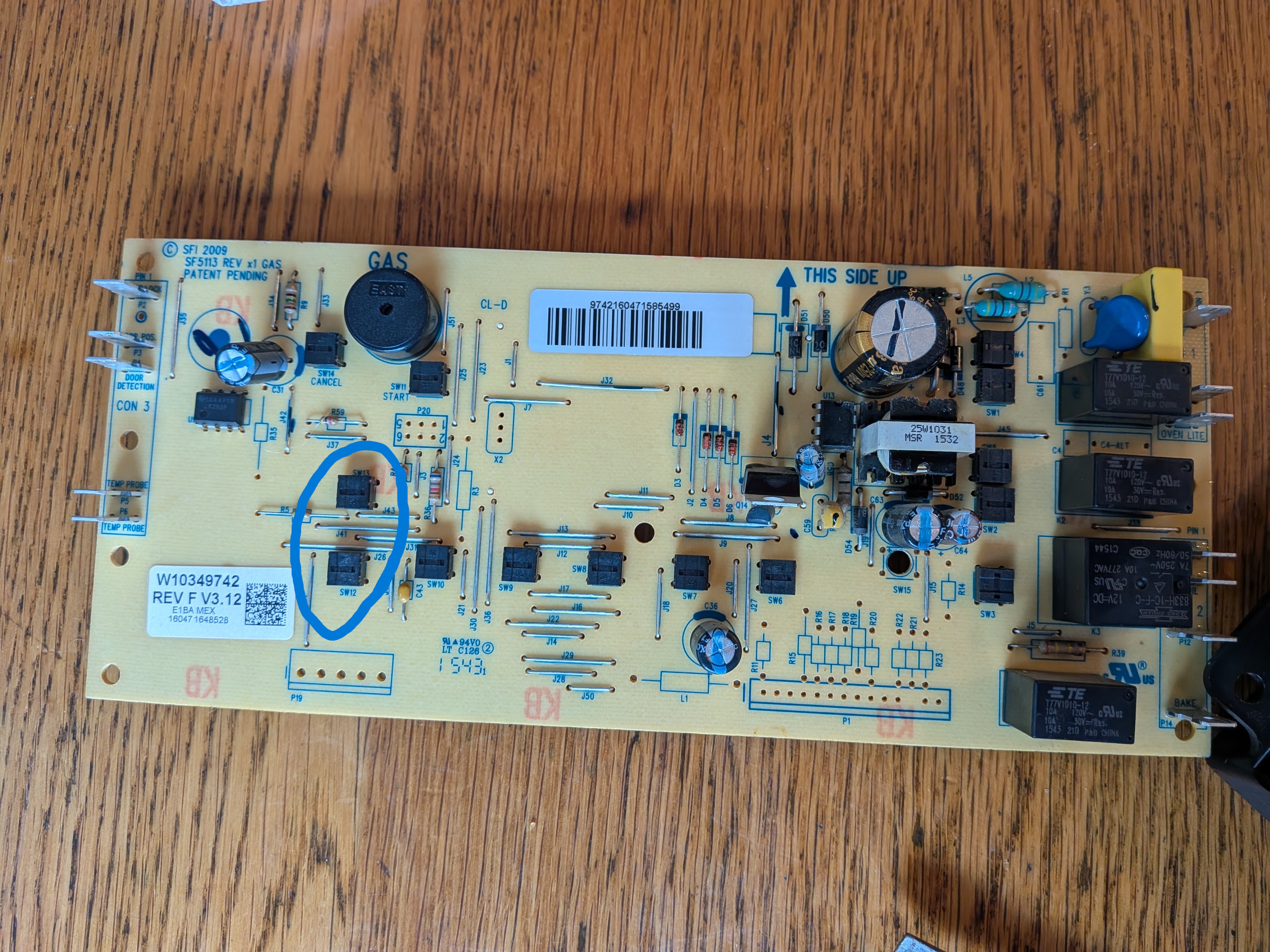

Front of the circuit board, button switch points are visible.

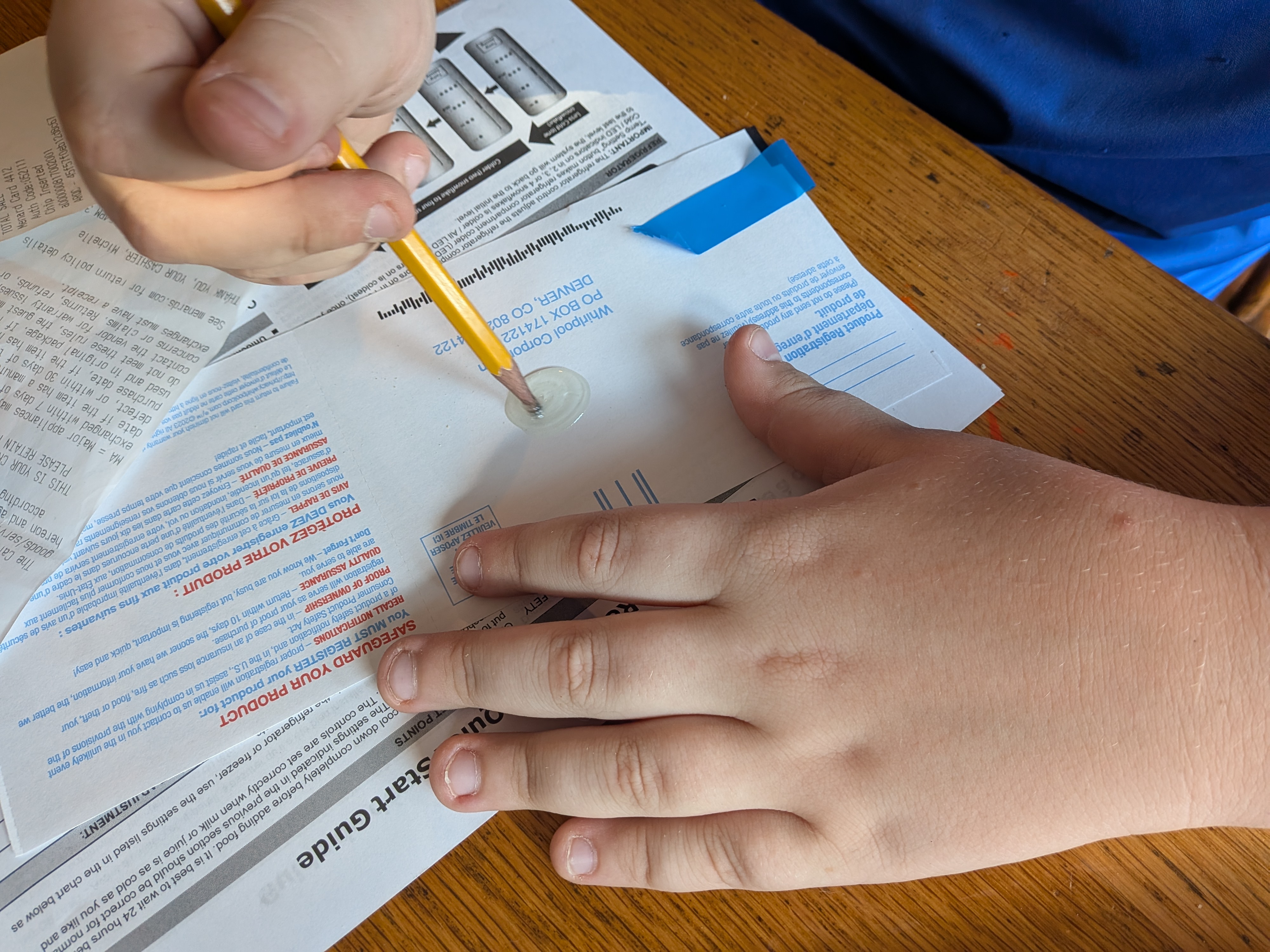

We applied epoxy to the board with a pencil

We applied epoxy to the board with a pencil

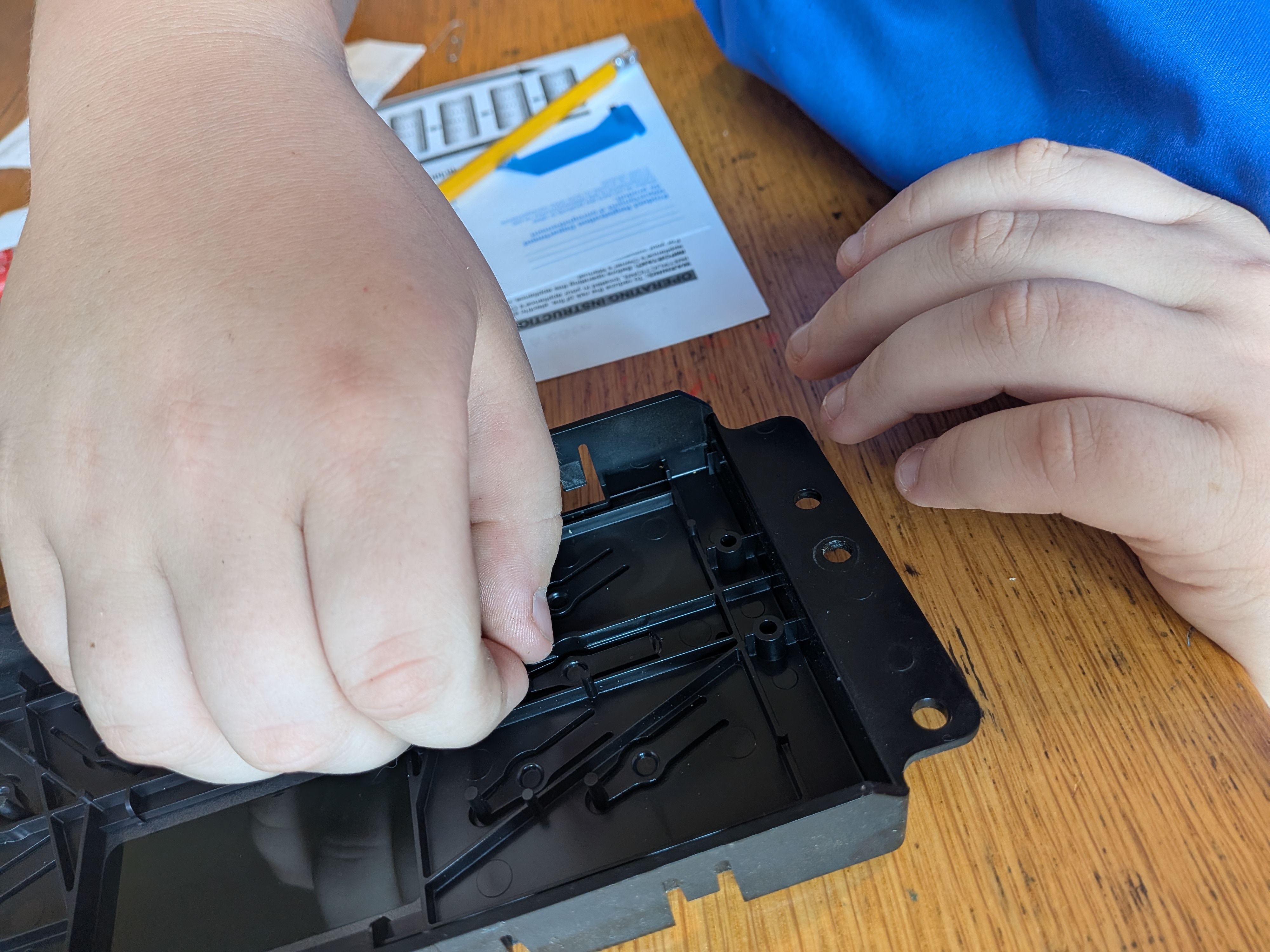

Epoxy applied to broken plastic finger

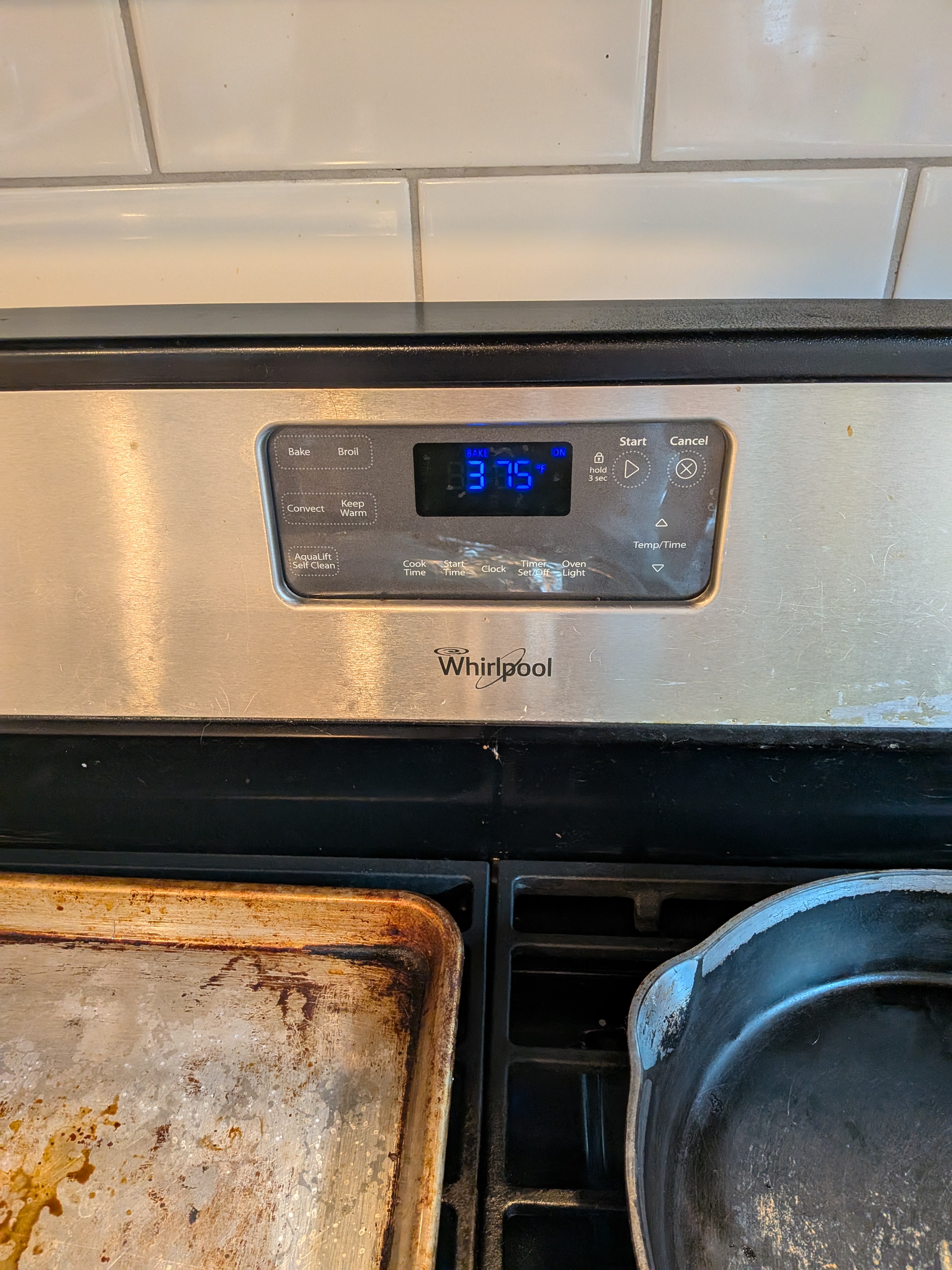

Finished product!
